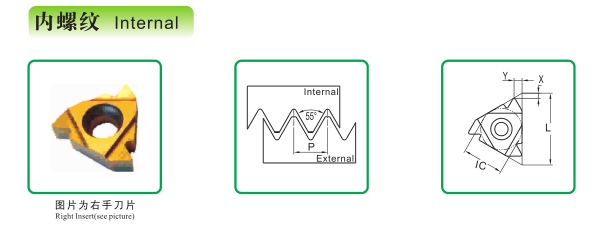

| 型号 Ordering Code 右手刀片 Right Hand |
材质 | 型号 Ordering Code 左手刀片 Left Hand |
材质 | 加工螺纹范围 | 刀片尺寸 | ||||
| Material Code | Material Code | Pitch | insert size | ||||||
| DP220 | DM215 | DP220 | DM215 | mm | tpi | IC | L | ||
| 06NRA55 | ● | ● | 06NLA55 | ○ | ○ | 0.5~1.5 | 48-16 | 5/32 | 0.271 |
| 08NRA55 | ● | ● | 08NLA55 | ○ | ○ | 0.5~1.5 | 48-16 | 3.0/16 | 0.325 |
| 11NRA55 | ● | ● | 11NLA55 | ○ | ○ | 0.5~1.5 | 48-16 | 1.0/4.0 | 0.43 |
| 16NRA55 | ● | ● | 16NLA55 | ○ | 0.5~1.5 | 48-16 | |||
| 16NRAG55 | ● | ● | 16NLAG55 | ○ | 0.5~3.0 | 48-8.0 | 3.0/8 | 0.63 | |
| 16NRG55 | ● | ● | 16NLG55 | ○ | 1.75~3.0 | 18-8.0 | |||
| 22NRN55 | ● | ● | 22NLN55 | ○ | 3.5~6.0 | 7-8.0 | 1.0/2 | 0.87 | |
| 27NRQ55 | ● | ● | 27NLQ55 | ○ | 5.5~6.0 | 4.5-4.0 | 5.0/8 | 1.06 | |
| 27VNRV55 | ● | ● | 27VNLV55 | ○ | 6.0~9.0 | 4.0-2.5 | 5.0/8 | 1.06 | |
