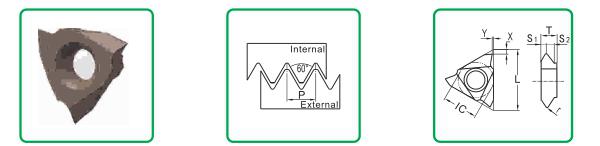

60°立装泛用型螺纹刀片 Partial Profile V-style Inserts
| 型号 Ordering Code 右手刀片 Right Hand |
材质 | 型号 Ordering Code 左手刀片 Left Hand |
材质 | 加工螺纹范围 | 刀片尺寸 | ||||
| Material Code | Material Code | Pitch | insert size | ||||||
| DP220 | DM215 | DP220 | DM215 | mm | tpi | IC | L/inch | ||
| MTTR436001 | ○ | ● | MTTL 436001 | ○ | 1.0~1.75 | 24-14 | |||
| MTTR436002 | ○ | ● | MTTL 436002 | ○ | 2.0~2.5 | 1/2” | 87 | ||
| MTTR436003 | ○ | ● | MTTL 436003 | ○ | 3.0~3.5 | ||||
| MTTR436004 | ○ | ● | MTTL 436004 | ○ | 4.0~4.5 | ||||
